BEAM040115-2Z軸承
我們不僅提供SKF BEAM040115-2Z軸承，還提供SKF品牌的其他品牌產品，以及SKF BEAM040115-2Z軸承的替換型號，萬千種型號，任您選擇。
型號：BEAM040115-2Z
品牌：SKF
內徑：40
外徑：115
厚度：46
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM040115-2Z軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

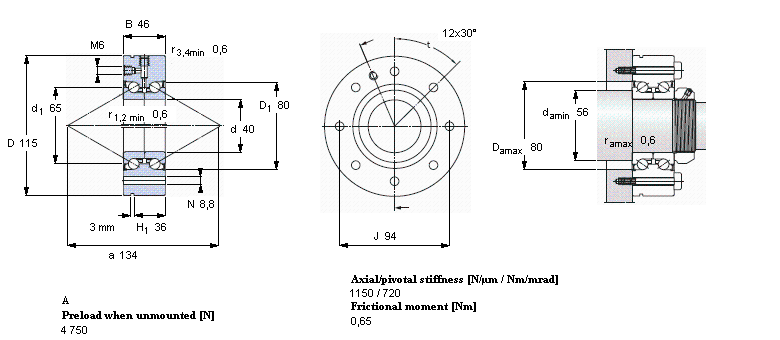

SKF BEAM040115-2Z尺寸圖紙
BEAM040115-2Z軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 40 | 115 | 46 | 71,5 | 150 | 5,5 | 3000 | 2,20 | BEAM 040115-2Z | BEAM 40/115/Z 7P60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BEAM012055-2RS軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM012055-2Z軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
相同內徑*外徑*厚度—40*115*46
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BEAM040115-2RS軸承
- 40
- 115
- 46
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM040115-2Z軸承
- 40
- 115
- 46
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- FAG
- ZKLF40115-2RS軸承
- 40
- 115
- 46
- 推力角接觸球軸承
- FAG
- ZKLF40115-2Z軸承
- 40
- 115
- 46
- 推力角接觸球軸承
- INA
- ZKLF40115-2RS軸承
- 40
- 115
- 46
- 推力角接觸球軸承
- INA
- ZKLF40115-2Z軸承
- 40
- 115
- 46
- 推力角接觸球軸承
