BEAM020068-2RS/PE軸承
作為傳統的進口軸承代理商，鼎力晟業以廣州為基地，全方位展開與SKF公司的合作，為本地SKF BEAM020068-2RS/PE軸承提供強大的貨源支持，并迅速推廣到全國各地，經過多年的努力，BEAM020068-2RS/PE軸承已成為我們的主導產品之一。
型號：BEAM020068-2RS/PE
品牌：SKF
內徑：20
外徑：68
厚度：28
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM020068-2RS/PE軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

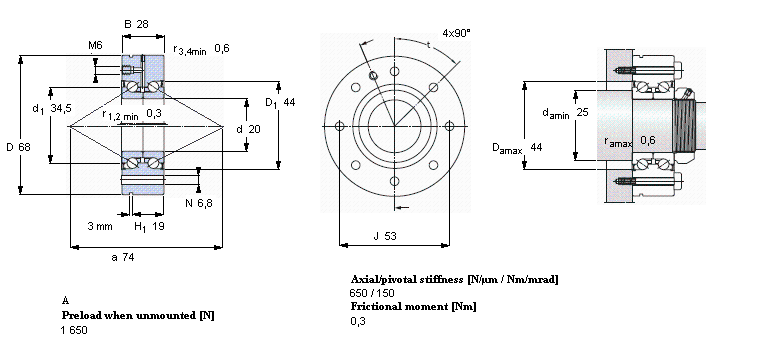

SKF BEAM020068-2RS/PE尺寸圖紙
BEAM020068-2RS/PE軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 3400 | 0,61 | BEAM 020068-2RS/PE | BEAM 20/68/C SQP60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BEAM012055-2RS軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM012055-2Z軸承
- 12
- 55
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
相同內徑*外徑*厚度—20*68*28
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BEAM020068-2RS軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- INA
- ZKLF2068-2RS軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- INA
- ZKLF2068-2RS-PE軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- INA
- ZKLF2068-2Z軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- FAG
- ZKLF2068-2RS軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- FAG
- ZKLF2068-2RS-PE軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- FAG
- ZKLF2068-2Z軸承
- 20
- 68
- 28
- 推力角接觸球軸承
