BSA204CG軸承
訂購SKF BSA204CG軸承，請隨時與我們聯系，我們將根據匯率的波動為您提供實時準確的價格，確保以最優惠的價格為您提供優質的SKF BSA204CG軸承。
型號：BSA204CG
品牌：SKF
內徑：20
外徑：47
厚度：14
系列：角接觸推力球軸承 for screw drives, single direction
【
手機版 BSA204CG軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

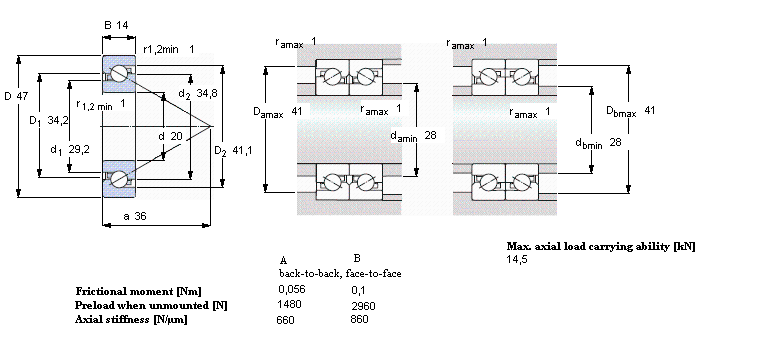

SKF BSA204CG尺寸圖紙
BSA204CG軸承基本參數
| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 47 | 14 | 22 | 49 | 1,8 | 9500 | 12000 | 0,12 | BSA 204 CG | BS 220 7P62U | |
角接觸推力球軸承 for screw drives, single direction
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BSA201CG軸承
- 12
- 32
- 10
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA202CG軸承
- 15
- 35
- 11
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA203CG軸承
- 17
- 40
- 12
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA204CG軸承
- 20
- 47
- 14
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSD2047CG軸承
- 20
- 47
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA205CG軸承
- 25
- 52
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSD2562CG軸承
- 25
- 62
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA305CG軸承
- 25
- 62
- 17
- 角接觸推力球軸承 for screw drives, single direction
相同內徑*外徑*厚度—20*47*14
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- NACHI
- 6204N軸承
- 20
- 47
- 14
- 深溝球軸承
- FAG
- 11204-TVH軸承
- 20
- 47
- 14
- 自調心球軸承
- SKF
- 30204軸承
- 20
- 47
- 14
- 圓錐滾子軸承
- SKF
- 6204-2RSLTN9/HC5C3WT軸承
- 20
- 47
- 14
- 深溝球軸承, 單列陶瓷混合軸承, 低摩擦兩面密封件
- NACHI
- 7204DF軸承
- 20
- 47
- 14
- 角接觸球軸承
- NACHI
- 7204BDF軸承
- 20
- 47
- 14
- 角接觸球軸承
- NACHI
- 7204CDF軸承
- 20
- 47
- 14
- 角接觸球軸承
- FAG
- 30204A軸承
- 20
- 47
- 14
- 圓錐滾子軸承
- NTN
- ET-30204軸承
- 20
- 47
- 14
- 圓錐滾子軸承
- NACHI
- HR30204J軸承
- 20
- 47
- 14
- 圓錐滾子軸承
