51202V/HR22Q2軸承
我們不僅提供SKF 51202V/HR22Q2軸承，還提供SKF品牌的其他品牌產品，以及SKF 51202V/HR22Q2軸承的替換型號，萬千種型號，任您選擇。
型號：51202V/HR22Q2
品牌：SKF
內徑：15
外徑：32
厚度：12
系列：聚合物球軸承,推力球軸承, PP/PP/glass/PP
【
手機版 51202V/HR22Q2軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

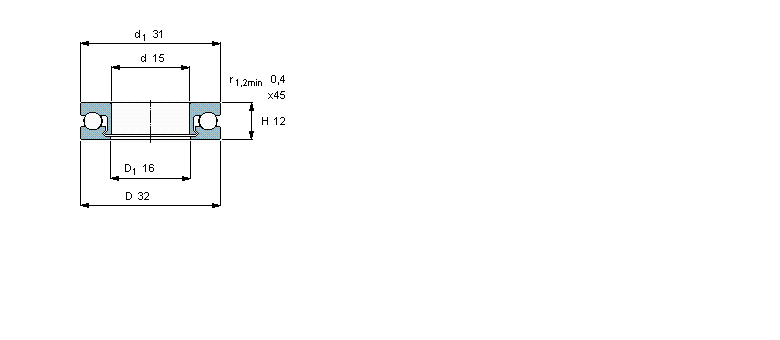

SKF 51202V/HR22Q2尺寸圖紙
51202V/HR22Q2軸承基本參數
| 聚合物球軸承,推力球軸承, PP/PP/glass/PP | ||||||||
|
||||||||
| 主要數據尺寸 | 負荷能力 | 額定速度 | 體積 | 型號 | ||||
| d | D | B | 動態 1) | 靜態 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 15 | 32 | 12 | 0,57 | 0,46 | 460 | 0,0088 | 51202 V/HR22Q2 | |
聚合物球軸承,推力球軸承, PP/PP/glass/PP
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- 51100V/HR22Q2軸承
- 10
- 24
- 9
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51200V/HR22Q2軸承
- 10
- 26
- 11
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51101V/HR22Q2軸承
- 12
- 26
- 9
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51201V/HR22Q2軸承
- 12
- 28
- 11
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51102V/HR22Q2軸承
- 15
- 28
- 9
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51202V/HR22Q2軸承
- 15
- 32
- 12
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51103V/HR22Q2軸承
- 17
- 30
- 9
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51203V/HR22Q2軸承
- 17
- 35
- 12
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
相同內徑*外徑*厚度—15*32*12
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- FAG
- NAO15X32X12-IS1軸承
- 15
- 32
- 12
- 滾針軸承
- SKF
- 51202軸承
- 15
- 32
- 12
- 推力球軸承, 單向
- SKF
- 51202V/HR11Q1軸承
- 15
- 32
- 12
- 聚合物球軸承,推力球軸承, POM/POM/glass/POM
- SKF
- 51202V/HR11T1軸承
- 15
- 32
- 12
- 聚合物球軸承,推力球軸承, POM/POM/stainless steel/POM
- SKF
- 51202V/HR22Q2軸承
- 15
- 32
- 12
- 聚合物球軸承,推力球軸承, PP/PP/glass/PP
- SKF
- 51202V/HR22T2軸承
- 15
- 32
- 12
- 聚合物球軸承,推力球軸承, PP/PP/stainless steel/PP
- NACHI
- 53202軸承
- 15
- 32
- 12
- 推力球軸承
- INA
- NAO15X32X12-IS1軸承
- 15
- 32
- 12
- 滾針軸承
- NACHI
- 51202軸承
- 15
- 32
- 12
- 推力球軸承
- NACHI
- 53202U軸承
- 15
- 32
- 12
- 推力球軸承
