SKF 71918ACD/P4A軸承是鼎力晟業長期代理的產品,鼎力晟業與SKF公司具有長期的71918ACD/P4A軸承采購計劃,可以為國內用戶提供足夠數量的SKF 71918ACD/P4A軸承,讓您的工廠無憂運轉。
型號:71918ACD/P4A
品牌:SKF
內徑:90
外徑:125
厚度:18
系列:角接觸球軸承, 精密, ACD, contact angle 25°
【
手機版 71918ACD/P4A軸承
點擊量
更新日期:2021/12/28
】
電話:020-36026999 傳真:020-36705678 服務熱線:18924187999 郵箱:sales@gzbearing.cn

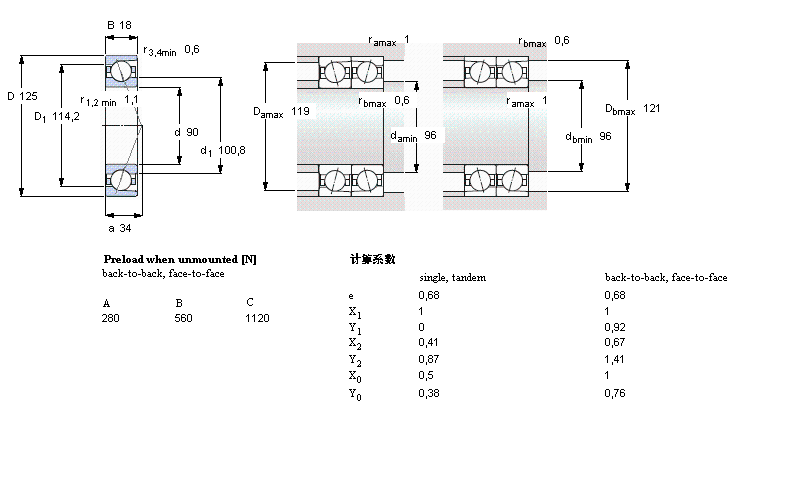

角接觸球軸承, 精密, ACD, contact angle 25° | |||||||||||
公差 , see also text / text 718 (SEA) series | |||||||||||
預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
Recommended fits, shafts, housings | |||||||||||
軸和軸承座公差 | |||||||||||
主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
d | D | B | C | C0 | Pu | ||||||
mm | kN | kN | r/min | kg | - | ||||||
90 | 125 | 18 | 44,2 | 48 | 1,96 | 8500 | 14000 | 0,55 | 71918 ACD/P4A | - |
