C7017DB/P7軸承

SKF

SKF進口軸承經銷磐固晟為用戶提供高品質的C7017DB/P7軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF C7017DB/P7軸承，確保您的不間斷生產。

型號：C7017DB/P7
品牌：SKF
內徑：85
外徑：130
厚度：22
系列：角接觸球軸承, 精密, C .. DB, contact angle 25°, hybrid
【更新日期：2016/8/3 電腦版 C7017DB/P7軸承】

C7017DB/P7軸承

角接觸球軸承, 精密, C .. DB, contact angle 25°, hybrid

公差 , see also text / text 718 (SEA) series

預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series

Recommended fits, shafts, housings

軸和軸承座公差

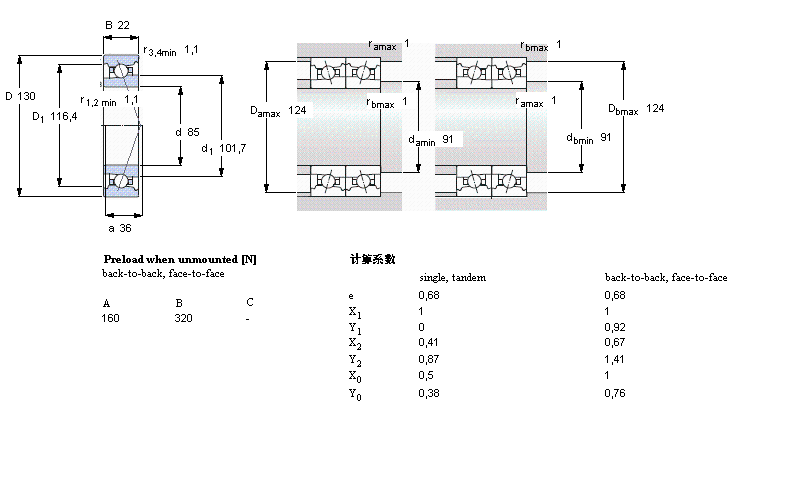

主要數據尺寸基本負荷額定值疲勞負荷限值可達到的速度體積型號

動態 靜態 當潤滑與 SKF SNFA

油脂滴油潤滑 Listing of both SKF and SNFA designations means that

d D B C C₀ P_u

mm kN kN r/min kg -

85 130 22 34,5 39 1,6 13000 20000 0,85 C7017 DB/P7 -

推薦型號


角接觸球軸承, 精密, C .. DB, contact angle 25°, hybrid
						公差 , see also text / text 718 (SEA) series
						預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series
						Recommended fits, shafts, housings
						軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	可達到的速度		體積	型號
			動態	靜態		當潤滑與			SKF	SNFA
						油脂	滴油潤滑		Listing of both SKF and SNFA designations means that
d	D	B	C	C₀	P_u

mm			kN		kN	r/min		kg	-

85	130	22	34,5	39	1,6	13000	20000	0,85	C7017 DB/P7	-
