71819ACD/HCP4軸承

SKF

SKF 71819ACD/HCP4軸承是磐固晟長期經銷的產品，磐固晟與SKF公司具有長期的71819ACD/HCP4軸承采購計劃，可以為國內用戶提供足夠數量的SKF 71819ACD/HCP4軸承，讓您的工廠無憂運轉。

型號：71819ACD/HCP4
品牌：SKF
內徑：95
外徑：120
厚度：13
系列：角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
【更新日期：2016/8/3 電腦版 71819ACD/HCP4軸承】

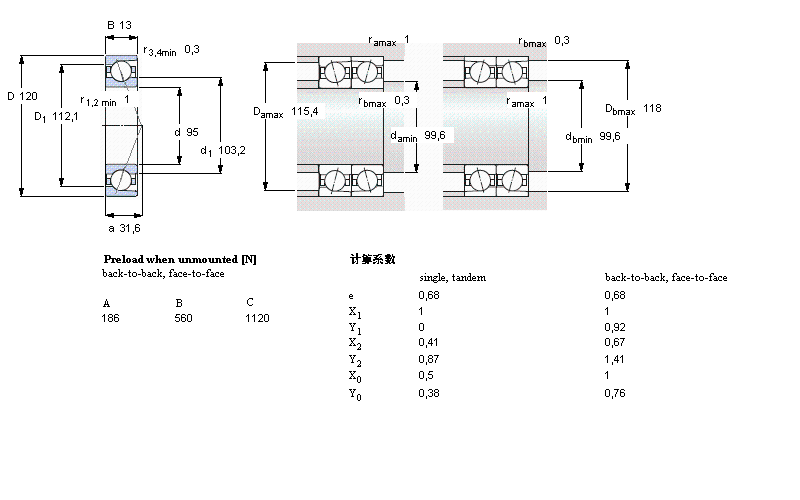

71819ACD/HCP4軸承

角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision

公差 , see also text / text 718 (SEA) series

預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series

Recommended fits, shafts, housings

軸和軸承座公差

主要數據尺寸基本負荷額定值疲勞負荷限值可達到的速度體積型號

動態 靜態 當潤滑與 SKF SNFA

油脂滴油潤滑 Listing of both SKF and SNFA designations means that

d D B C C₀ P_u

mm kN kN r/min kg -

95 120 13 20,8 25,5 1,06 11000 17000 0,263 71819 ACD/HCP4 SEA95 /NS 7CE3

推薦型號


角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision
						公差 , see also text / text 718 (SEA) series
						預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series
						Recommended fits, shafts, housings
						軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	可達到的速度		體積	型號
			動態	靜態		當潤滑與			SKF	SNFA
						油脂	滴油潤滑		Listing of both SKF and SNFA designations means that
d	D	B	C	C₀	P_u

mm			kN		kN	r/min		kg	-

95	120	13	20,8	25,5	1,06	11000	17000	0,263	71819 ACD/HCP4	SEA95 /NS 7CE3
