7018ACE/P4A軸承

SKF

SKF 7018ACE/P4A軸承是磐固晟長期經銷的產品，磐固晟與SKF公司具有長期的7018ACE/P4A軸承采購計劃，可以為國內用戶提供足夠數量的SKF 7018ACE/P4A軸承，讓您的工廠無憂運轉。

型號：7018ACE/P4A
品牌：SKF
內徑：90
外徑：140
厚度：24
系列：角接觸球軸承, 精密, ACE, contact angle 25°
【更新日期：2016/8/3 電腦版 7018ACE/P4A軸承】

7018ACE/P4A軸承

角接觸球軸承, 精密, ACE, contact angle 25°

公差 , see also text / text 718 (SEA) series

預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series

Recommended fits, shafts, housings

軸和軸承座公差

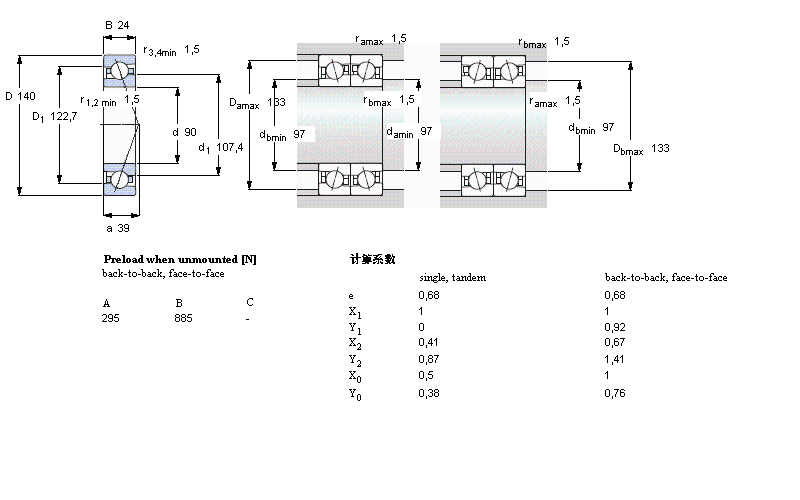

主要數據尺寸基本負荷額定值疲勞負荷限值可達到的速度體積型號

動態 靜態 當潤滑與 SKF SNFA

油脂滴油潤滑 Listing of both SKF and SNFA designations means that

d D B C C₀ P_u

mm kN kN r/min kg -

90 140 24 35,1 26,5 1,04 12000 19000 1,15 7018 ACE/P4A -

推薦型號


角接觸球軸承, 精密, ACE, contact angle 25°
						公差 , see also text / text 718 (SEA) series
						預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series
						Recommended fits, shafts, housings
						軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	可達到的速度		體積	型號
			動態	靜態		當潤滑與			SKF	SNFA
						油脂	滴油潤滑		Listing of both SKF and SNFA designations means that
d	D	B	C	C₀	P_u

mm			kN		kN	r/min		kg	-

90	140	24	35,1	26,5	1,04	12000	19000	1,15	7018 ACE/P4A	-
